7Semi INA219 3-Channel DC Current Sensor Breakout - 26V 3.2A Max

7Semi
SKU
ES-12161

Monitors DC current, voltage and power across three independent I²C channels.

7Semi INA219 3-Ch DC Current Sensor Breakout - 26V 3.2A Max

Select a photo to enlarge it.

42 × 22 × 11.94 mm

Write a Review
MSRP: $11.40
$6.90
(You save $4.50 )
21 in stock

Ships in 24 hours from Mumbai warehouse

Adding to cart… The item has been added

About this product

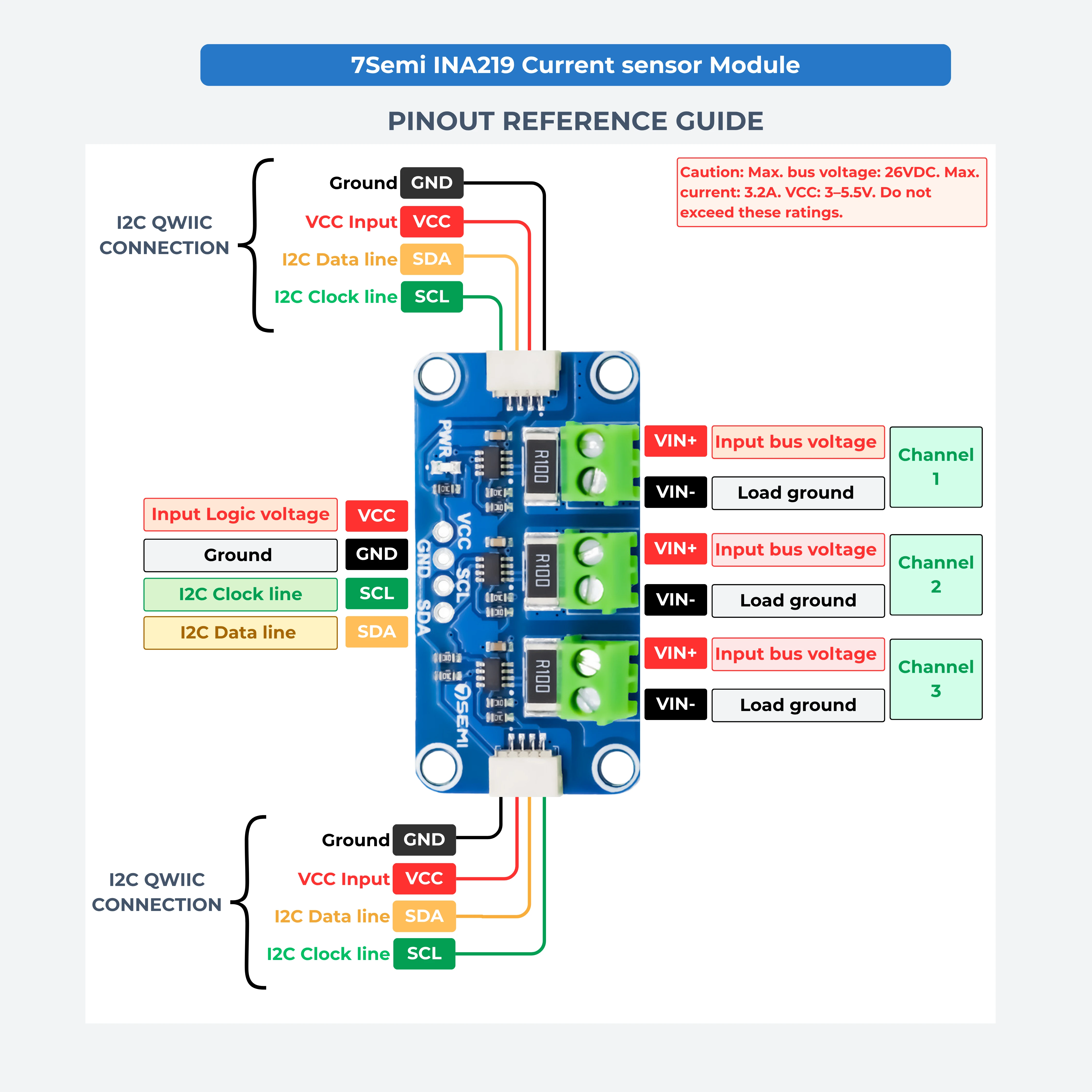

The 7Semi INA219 3-Channel DC Current Sensor Breakout enables accurate current, voltage, and power monitoring across three independent channels. Each channel measures bidirectional DC current up to +/-3.2 A and bus voltage from 0 V to 26 V DC. Three onboard INA219 current sensor ICs provide reliable 12-bit digital measurements through the I2C interface. Dedicated I2C addresses 0x40, 0x41, and 0x42 allow all three channels to operate simultaneously. The module supports 3.3V and 5 V controllers, including Arduino, ESP32, STM32, and Raspberry Pi. It is ideal for battery monitoring, solar systems, power supplies, DC loads, and IoT power-management applications.

Key Features

  • Three independent INA219 channels for simultaneous DC current, voltage, and power monitoring.
  • Measures bidirectional current up to +/-3.2 A per channel and bus voltage up to 26 V DC.
  • Integrated 12-bit ADC delivers digital measurements with gain error up to +/-0.5%.
  • I²C interface uses dedicated addresses 0x40, 0x41, and 0x42 for easy multi-channel operation.
  • Compatible with 3.3 V and 5 V systems and includes dual Qwiic connectors for convenient integration.
  • Supports selectable shunt-voltage ranges of +/-40 mV, +/-80 mV, +/-160 mV and +/-320 mV.
  • Measures current flow in both directions across three independent channels.
  • Supports programmable conversion times and averaging for flexible measurement performance.

Includes:

  • 1 × 7Semi INA219 3-Channel DC Current Sensor Breakout

  • 1 × 2.54 mm Pin Header

Resources:

Datasheet INA219

Arduino library
