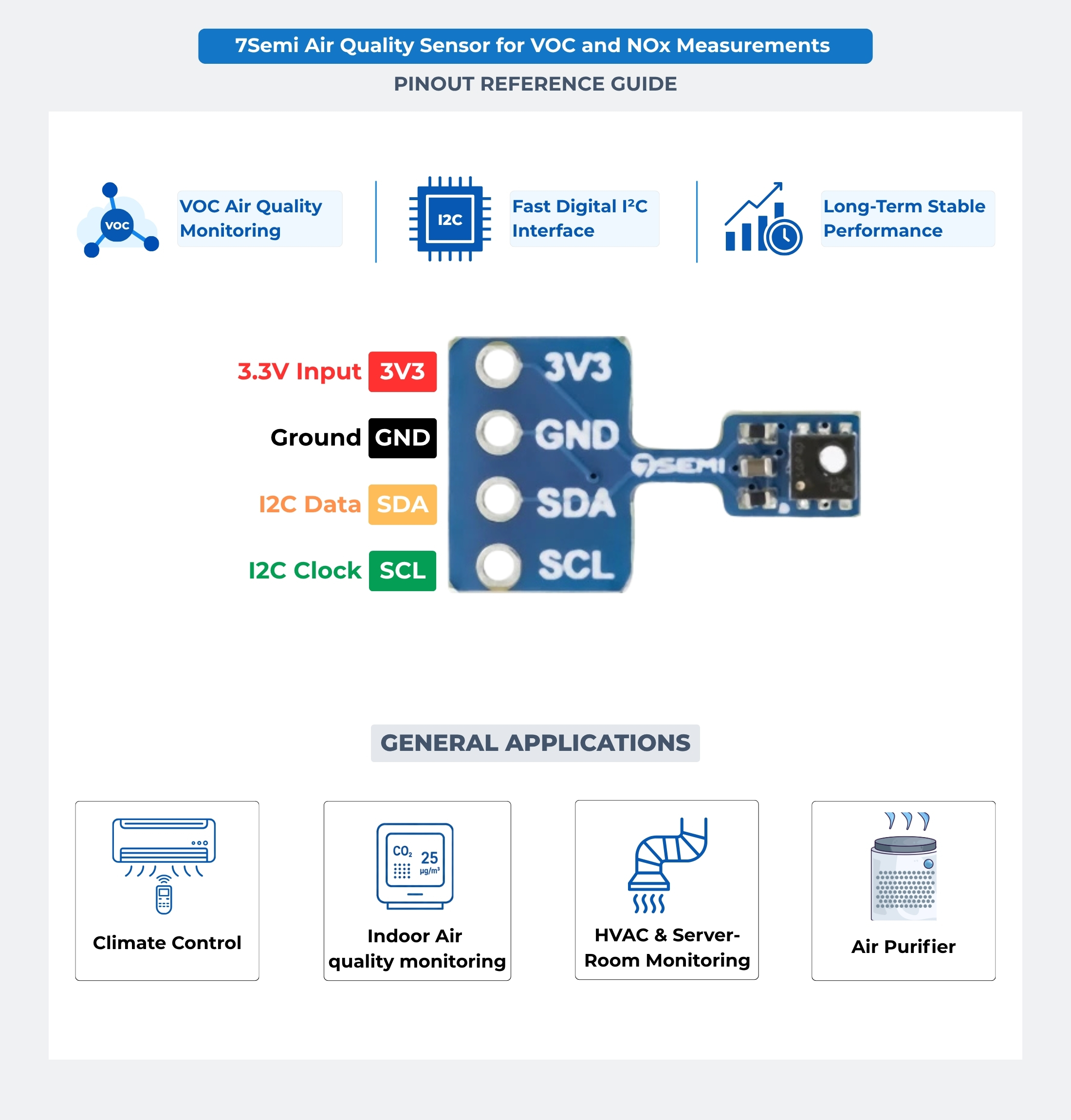

7Semi SGP40 VOC Sensor Breakout for Indoor Air Quality 2.54mm Pitch

The 7Semi SGP40 VOC Sensor Breakout integrates Sensirion’s SGP40 MOx gas sensor for monitoring VOC-related changes in indoor air quality. It communicates through a digital I²C interface, operates at typ 3.3V, and includes a Breadboard compatible connector for easy integration with development boards and embedded systems. The sensor’s raw signal can be processed using Sensirion’s VOC Index algorithm to generate a VOC Index from 0 to 500, providing an easy way to track changes in indoor air quality.

Key Features

• VOC Air Quality Monitoring: Detects changes in VOC-related indoor air quality using Sensirion’s MOx sensing technology.
• VOC Index Output: Supports Sensirion’s VOC algorithm for generating an easy-to-understand VOC Index from 0 to 500.
• Digital I²C Interface: Provides simple digital communication for integration with microcontrollers and embedded systems.
• Long-Term Stable Performance: Designed for reliable operation and consistent VOC-based air-quality monitoring over time.
• Humidity Compensation Support: External temperature and humidity data can be supplied to improve consistency of the VOC signal.
• Easy Integration: Compact breakout design with breadboard-compatible connectivity for rapid prototyping.

Package includes

• SGP40 Breakout (ES-12201)
• 1x Pin header with 2.54mm pin header
