7semi Vikram 3020 | 7V-32V DC Input 20A Single Channel Motor Driver

SKU
MD-10125

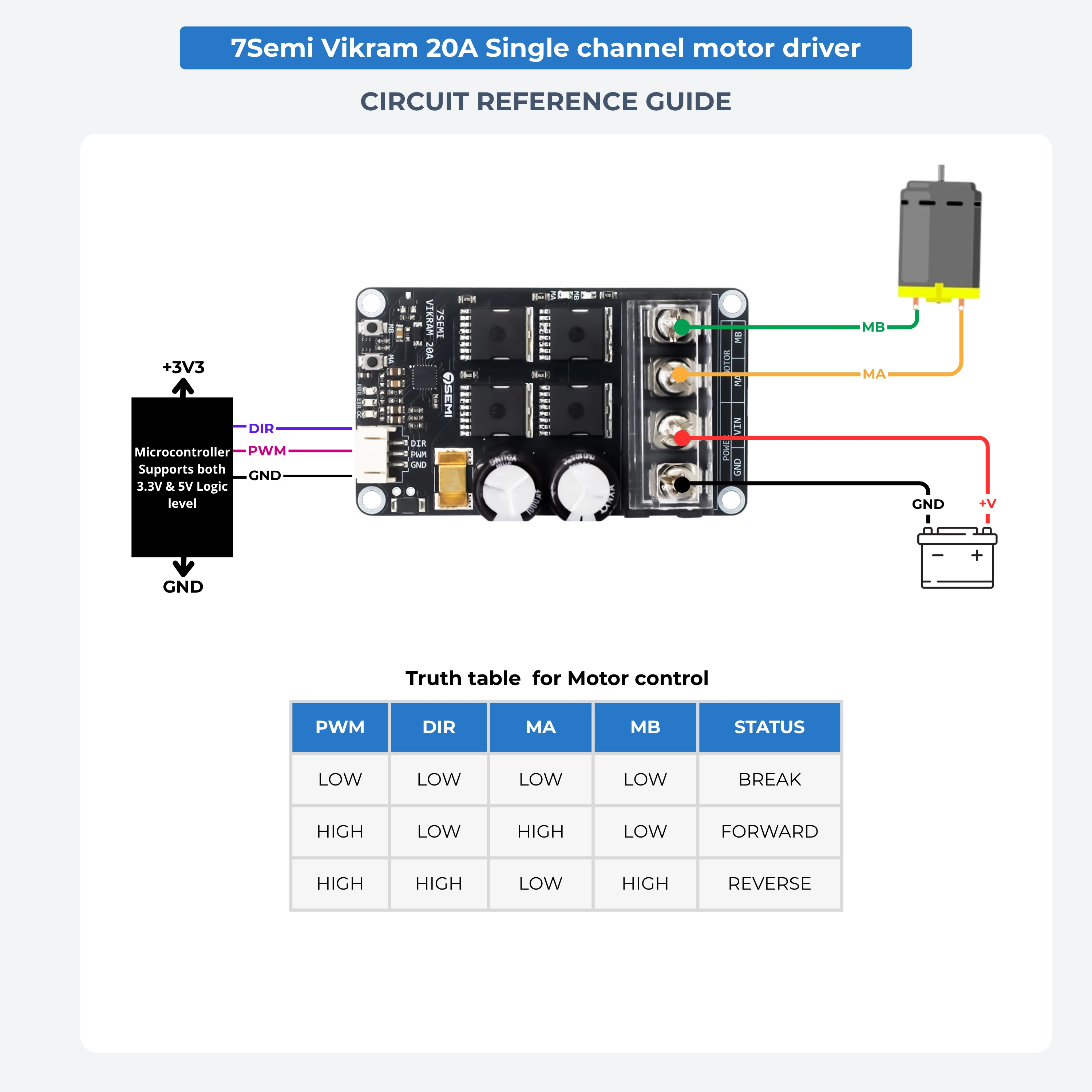

Controls brushed DC motor speed and direction through PWM and direction inputs.

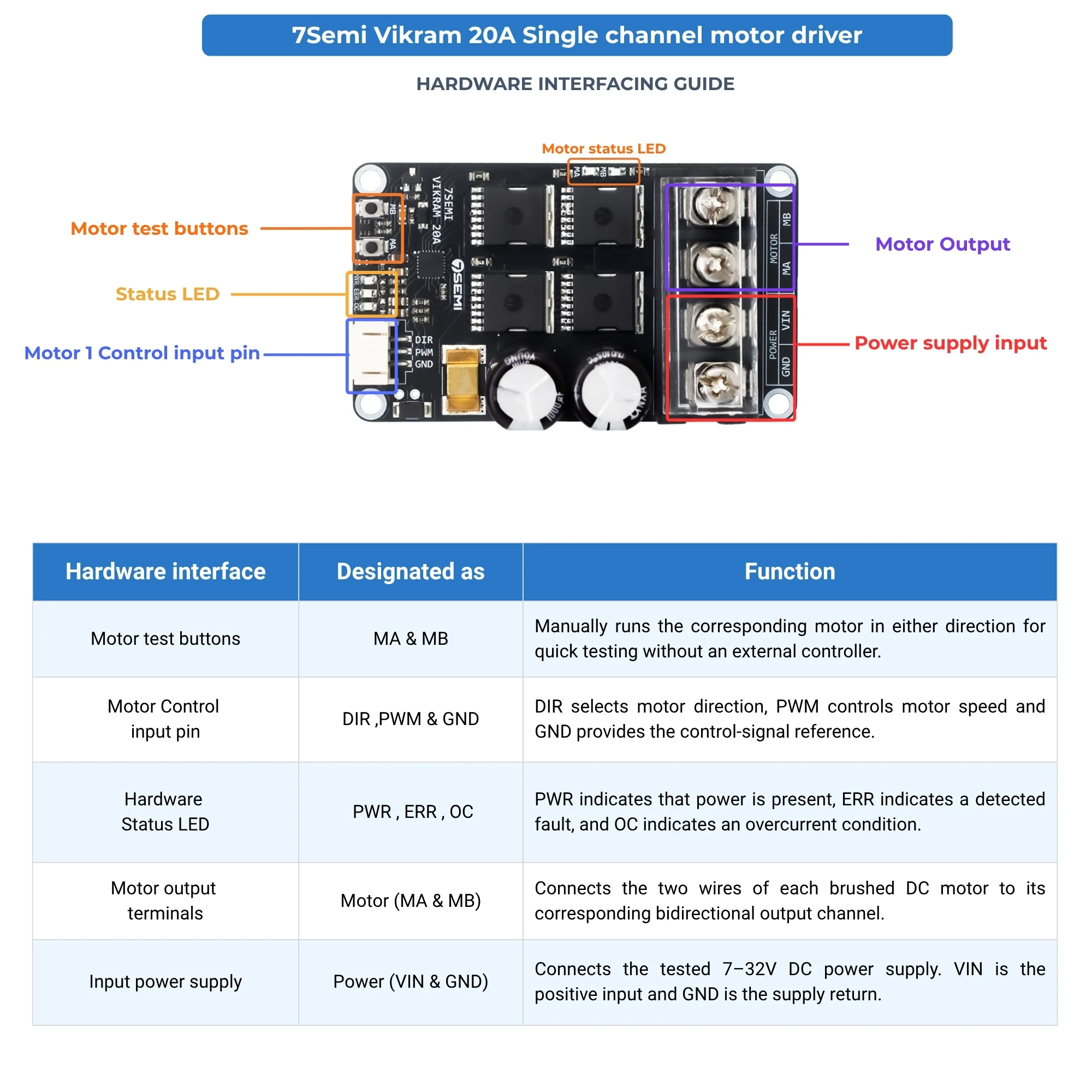

7Semi 20A single-channel brushed DC motor driver module with PWM and direction control, high-current screw terminals, MOSFET H-bridge, and onboard capacitors
Sold Out

Select a photo to enlarge it.

72mm x 42mm x 27.22mm

Write a Review
$19.00

Out of stock

Out of stock

About this product

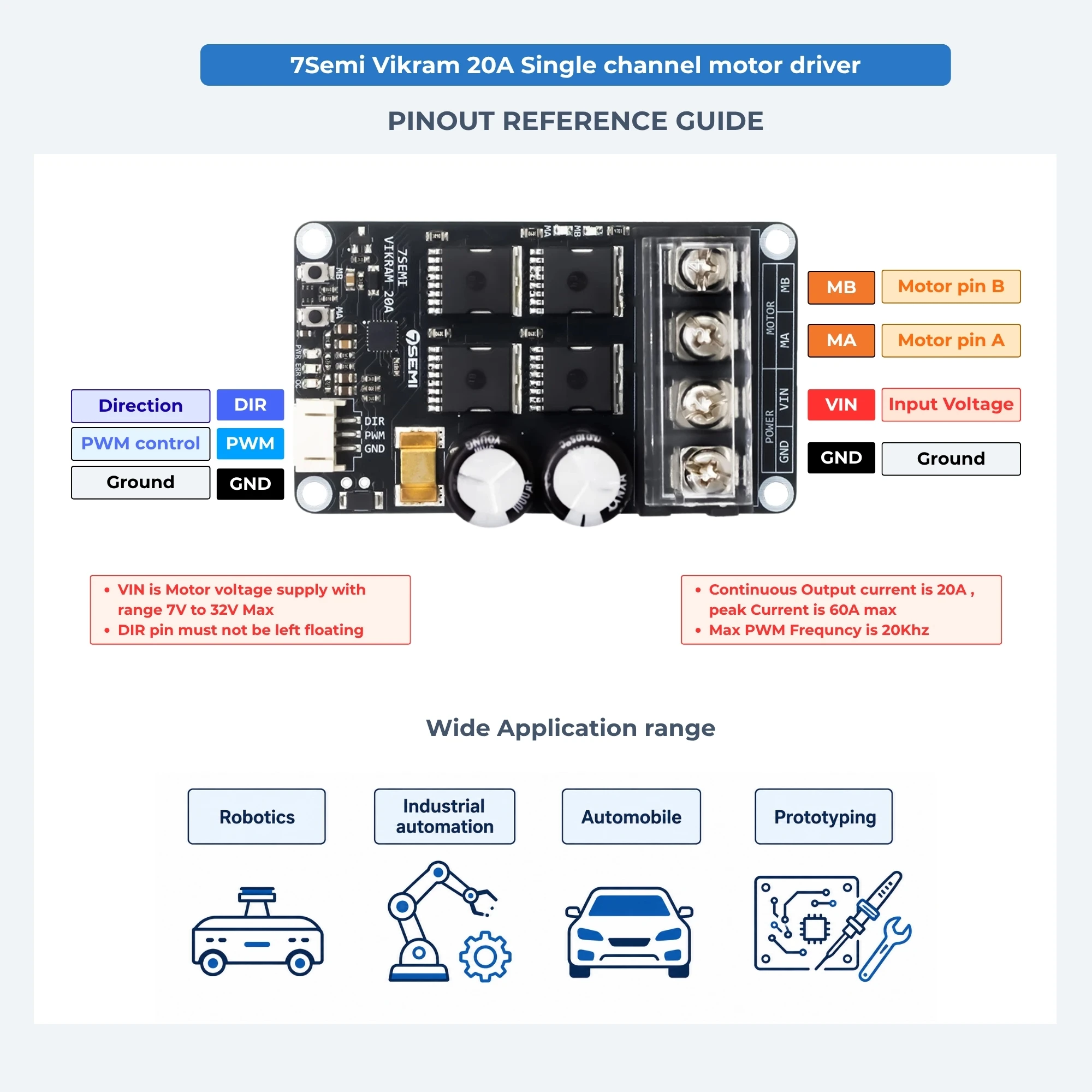

The 7Semi Vikram 20A Single-Channel Brushed DC Motor Driver is a high-current motor control module designed to independently drive one brushed DC motors. The motor channel provides dedicated direction and PWM control, making the module suitable for differential-drive robots, automated guided vehicles, industrial actuators and other demanding motion-control systems.

Protection Features

  • Overcurrent Protection (OCP): Protects the power stage when excessive motor current or an output fault is detected.
  • VM Undervoltage Lockout (UVLO): Prevents unstable motor operation when the supply voltage falls below the required operating level.
  • Thermal Shutdown (TSD): Disables motor operation when the module reaches the 120°C thermal shutdown limit.


Key Features

  • Single-channel brushed DC motor driver
  • Drives one brushed DC motors independently
  • Bidirectional forward and reverse motor control
  • 20A continuous output current
  • 7V to 32V DC motor power supply range
  • Maximum 20KHz PWM control frequency
  • Discrete high-current H-bridge power stage

Product includes

1x Motor driver module (MD-10125)

1x JST connector cable

Resources

STEP Files

DXF Files
