The 7Semi Vikram-3010 is a single-channel, bidirectional motor driver designed to control one high-current brushed DC motor. It operates from a 6V to 30V DC supply, delivers up to 10A continuous current, and supports a 30A momentary peak current. Separate PWM and DIR inputs provide simple control of motor speed and direction, while onboard test buttons and LED indicators make testing and monitoring easier. Integrated overcurrent, overtemperature, and undervoltage protection makes it suitable for robotics, automation, and other demanding motor-control applications.
Features
- Controls one bidirectional brushed DC motor.
- Operates from a 6V to 30V DC motor supply.
- Delivers up to 10A continuous and 30A momentary peak current.

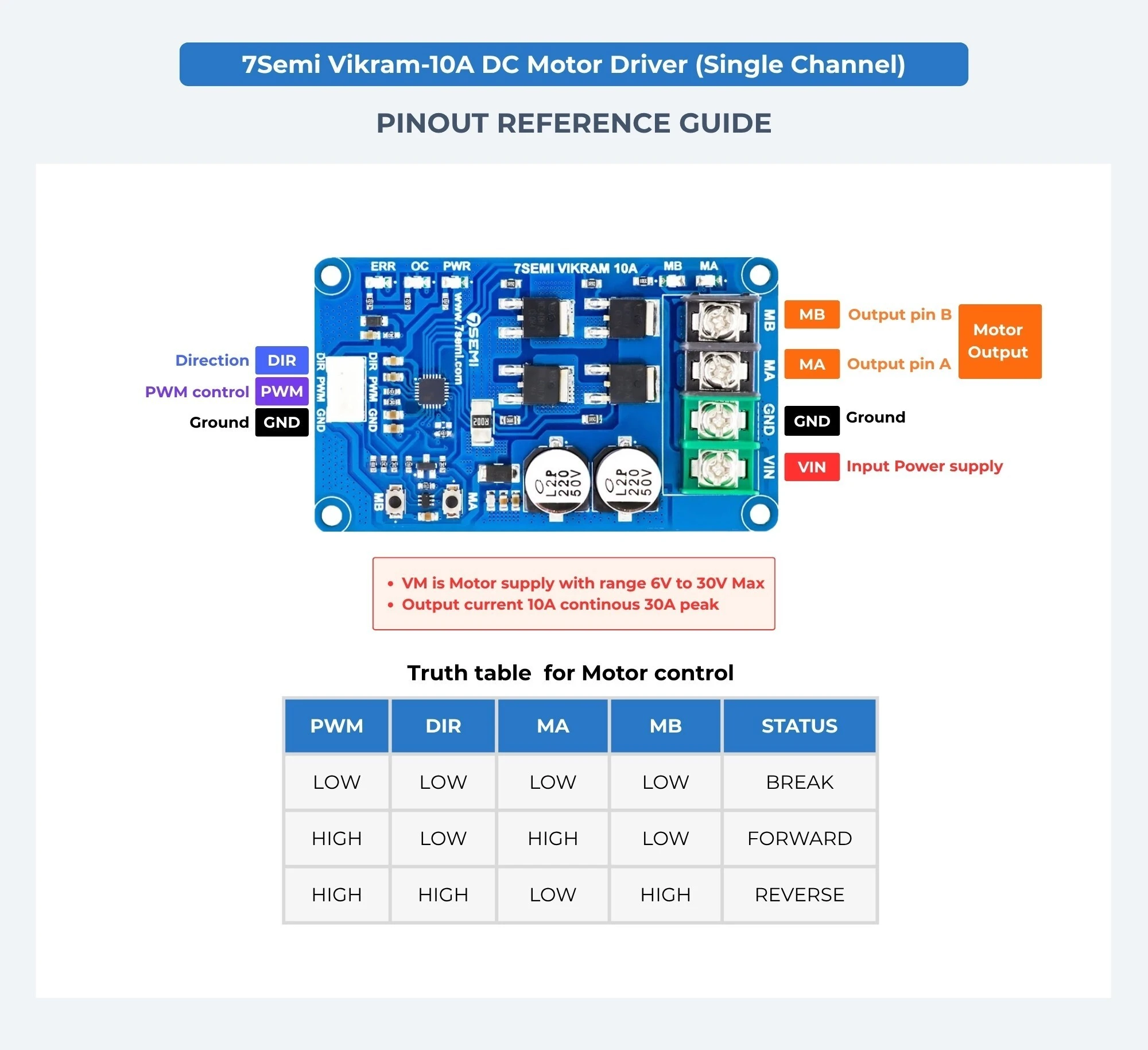

- Supports forward, reverse, brake, and PWM speed control.
- Includes onboard motor-test buttons and LED status indicators.
- Features overcurrent, overtemperature, and undervoltage protection.
Resources
On-board Motor Quick Test Buttons Demo
- Voltage require:
- 6V TO 30V
- Operational temperature in °C:
- –40°C to +70°C
- Current rating (Continuous)::
- 10A
- Peak Current rating:
- 30A
- Dimension in mm:
- 74mm x 44mm x 14.40mm
- Topology:
- Single channel H-bridge module
- _3d_glb:
- https://7semi.com/content/3d-files/10124.glb
