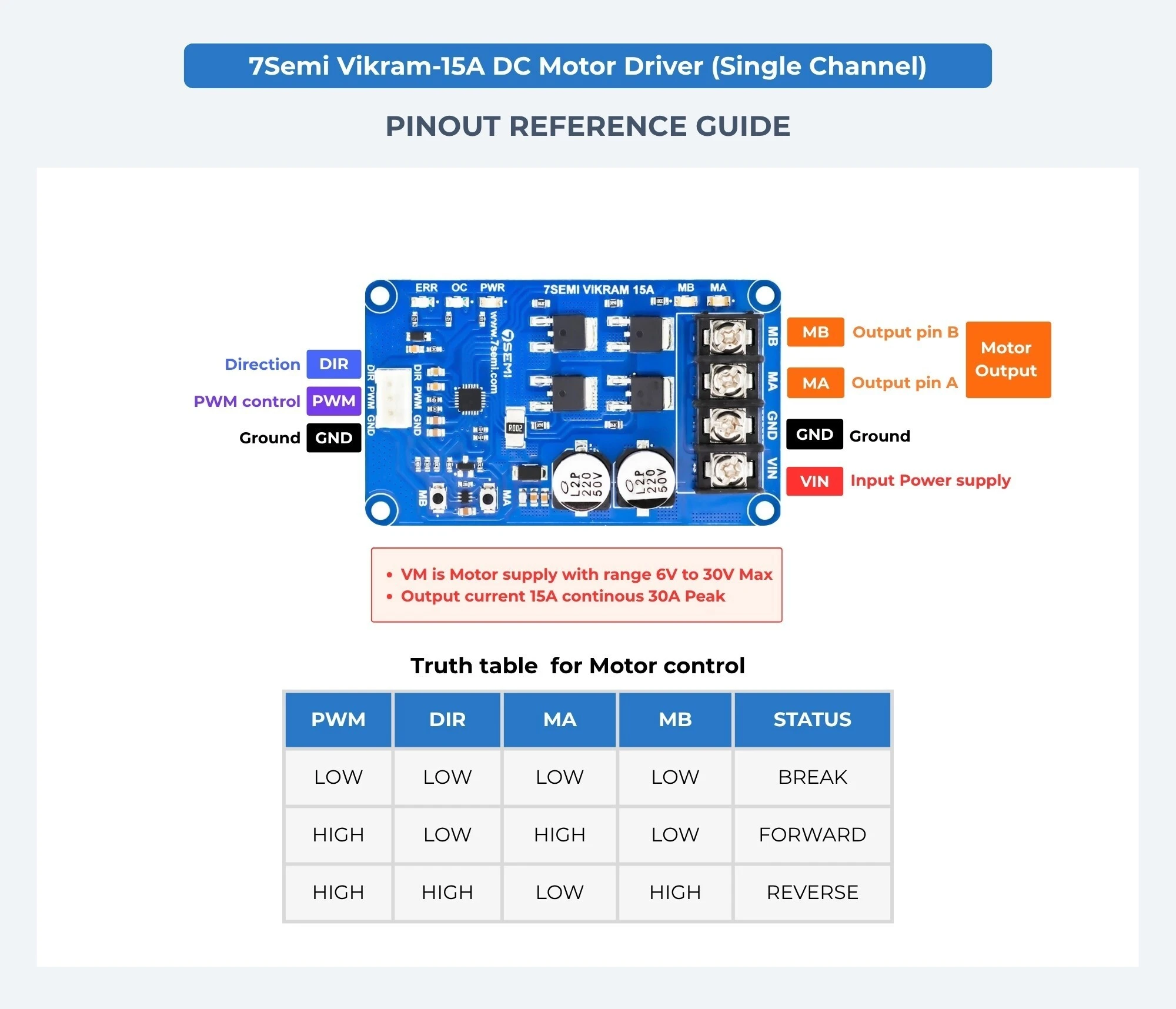

The Vikram-3015 stands as a versatile solution for controlling brushed DC motors, serving as a 30V 15A Single Channel Motor Driver. Its bidirectional control enables efficient operation within a voltage range of 6V to 30V, delivering a continuous current of 15A. User-friendliness is paramount, featuring 3.3V and 5V logic level inputs, along with test buttons and motor output LEDs for convenient testing. Safety measures include overcurrent, over-temperature, and undervoltage protection. The fully NMOS H-Bridge design ensures high efficiency, eliminating the need for a heat sink. With compatibility for PWM and DIR inputs, it suits various host controllers such as Arduino, Raspberry Pi, and PLCs.
Features
- Bi-directional control for single channel brushed DC motor
- Operating voltage voltage range 6V to 30V
- Continuous current 15A
- 3.3V and 5V logic level input.
- Buttons for quick testing.
- LEDs for motor output state.
- Overcurrent protection
- Over Temperature protection.
- Undervoltage shutdown.
- Fully NMOS H-Bridge for better efficiency and no heat sink is required
Resources
On-board Motor Quick Test Buttons Demo
- VOLTAGE REQUIRED (V):
- 5V TO 12V
- OPERATIONAL TEMPRATURE:
- -40°C to +70°C
- CONTINOUS CURRENT:
- 10A
- PEAK OUTPUT CURRENT:
- 15A
- TOPOLOGY:
- SINGLE CHANNEL H BRIDGE
- DIMENSION IN mm:
- 74 X 44 X 14.92
