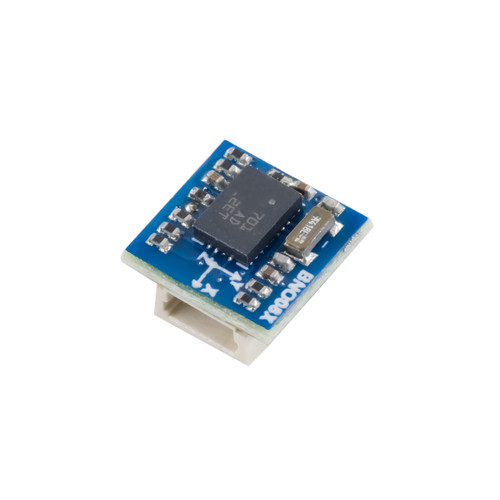

The BNO085 9-DOF Orientation IMU Fusion Nano Breakout is a compact inertial measurement unit providing 9 degrees of freedom with built-in sensor fusion for precise orientation tracking. It combines accelerometer, gyroscope, and magnetometer sensors to deliver accurate data on movement and heading, suitable for robotics, VR, AR, and IoT applications. With support for I2C and SPI interfaces, it integrates easily into systems requiring responsive motion sensing and orientation feedback.
Features:
-
Advanced Sensor Fusion: 9-axis integration with precise data outputs, including acceleration, angular velocity, and magnetic field strength.
-
Low Power Consumption: Optimized for efficient energy usage in portable devices, with a low-power ARM Cortex M0+ processor.
-
Versatile Compatibility: Backward compatible with BNO080, offering enhanced reliability with SPI compatibility fixes.
-
Comprehensive Data Reporting: Supports a variety of calibrated, uncalibrated, and raw data reports.
-
Enhanced Detection and Classification: Includes Stability Detection, Motion Detection, Activity Classification, and unique AR/VR rotation vectors.
-
Developer-Friendly Interface: I2C interface for straightforward integration with multiple device architectures.
Resources
BNO085 Datasheet
- OPERATIONAL VOLTAGE:
- 3.3V
- OPERATIONAL TEMPRATURE °C:
- -40 TO 80
- AXIS/FOV:
- 9
- COMMUNICATION METHOD:
- I2C
- ACCLERATION RANGE:
- ±2g, ±4g, ±8g, ±16g
- GYROSCOPE:
- GYROSCOPE ±125°/s, ±250°/s, ±500°/s, ±1000°/s, ±2000°/s
- MAGNETOMETER:
- 1300UT
- DIMENSION IN MM:
- 11 X 10 X 6
