7Semi EC200G-CN LTE Cat 1 4G GNSS Nano Industrial Modem

7Semi
SKU
CM-10144

Combines cellular data connectivity and satellite positioning for embedded and industrial systems.

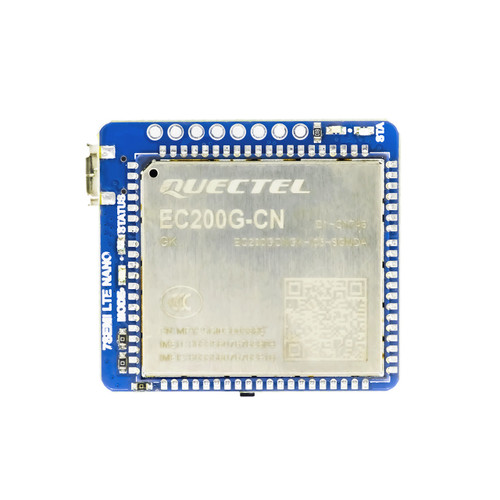

7Semi EC200G-CN LTE 4G GNSS Nano Modem with FPC antenna, top view
Sold Out

Select a photo to enlarge it.

39mm x 33mm x 6.73mm

Write a Review
$23.00

Out of stock

Out of stock

About this product

The 7Semi EC200G-CN LTE 4G GNSS Nano Modem provides reliable cellular connectivity and GNSS positioning in a compact form factor. Powered by the Quectel EC200G-CN module, it supports USB and UART communication, allowing seamless integration with embedded systems, industrial controllers, or PCs.

This modem includes a nano-SIM slot, accepts 5 V through USB or 5–26 V external power input, and is supplied with a high-efficiency flexible FPC antenna featuring an IPEX (u.FL) connector for strong signal performance

Features

  • LTE Cat-1 connectivity using Quectel EC200G-CN

  • Optimized and certified for operation in India and China networks

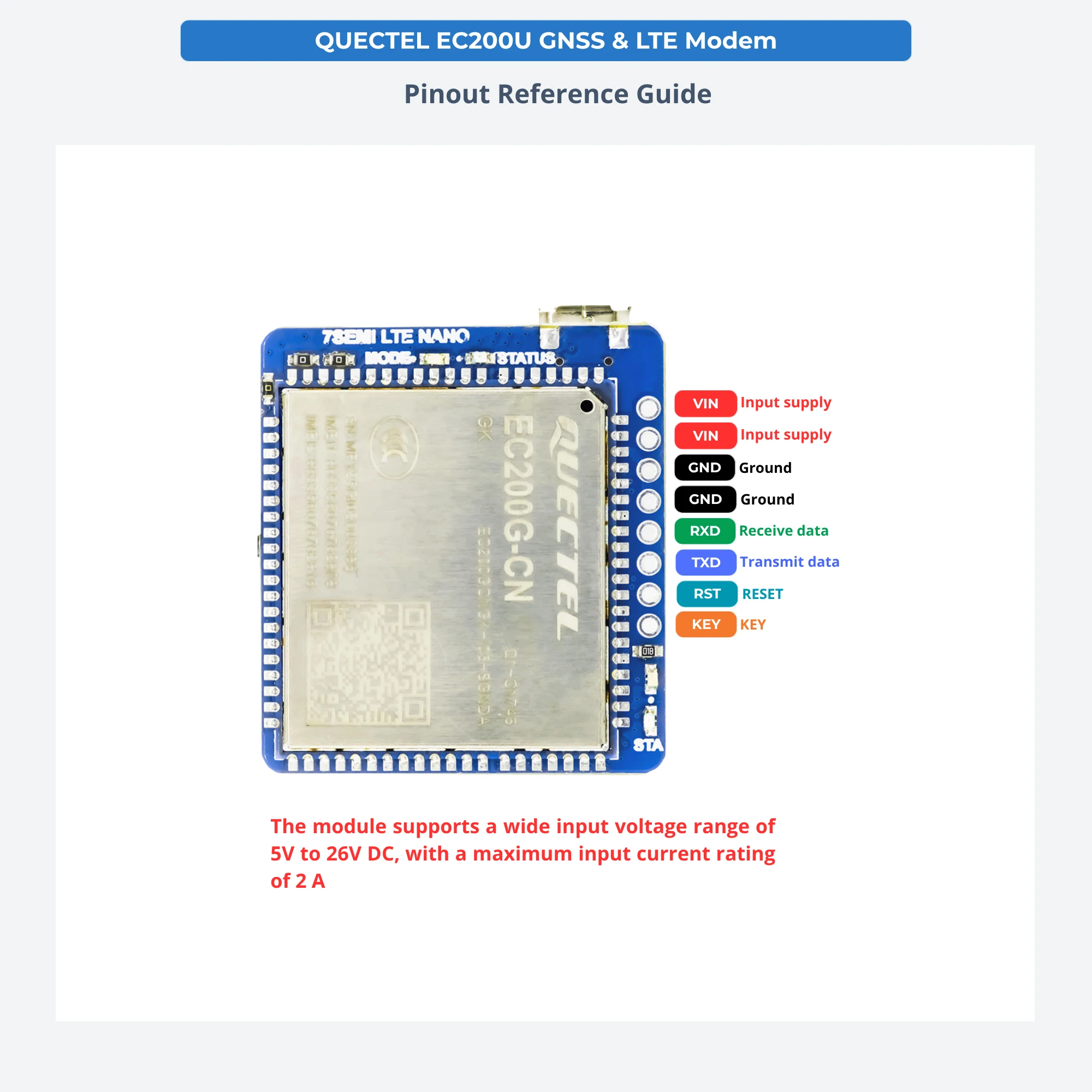

  • Dual interface: USB-micro and UART

  • Wide-range power input: 5–26V

  • LTE-FDD bands : B1, B3, B5, B8

  • LTE-TDD bands : B34, B38, B39, B40, B41

  • FPC antenna (52 × 24 mm) with IPEX (u.FL) connector, 1.13 mm coax cable, and 3M adhesive

  • Ideal for transportation, industrial IoT, and telemetry applications requiring reliable data links and precise positioning

What’s Included

  • 1x EC200G-CN LTE 4G GNSS Nano Modem board

  • 1x FPC antenna with IPEX (u.FL) connector and adhesive backing
