7Semi EC200G-CN LTE Cat 1 4G GNSS Mini Industrial Modem

7Semi
SKU
CM-10133

Combines cellular data connectivity and satellite positioning for embedded and industrial systems.

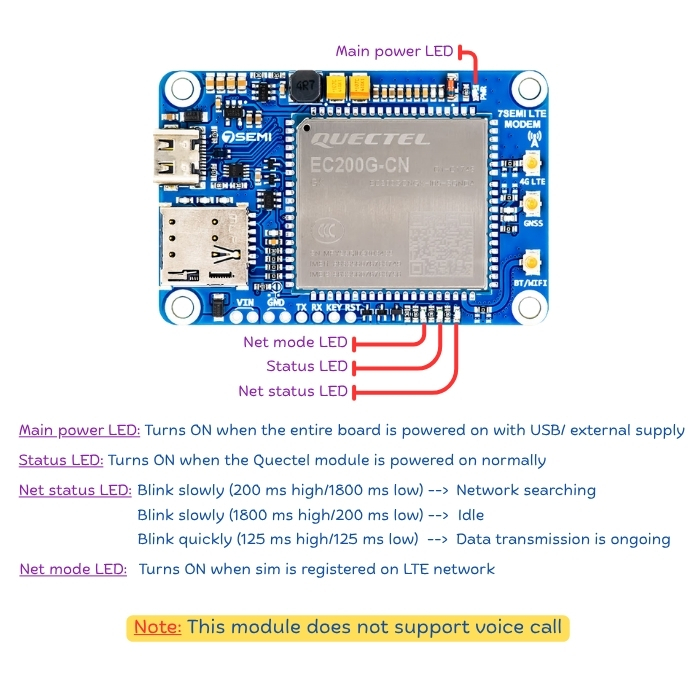

Semi EC200G-CN LTE 4G GNSS Mini Modem with FPC antenna, top view
Sold Out

Select a photo to enlarge it.

61 × 40 × 4.92mm

Write a Review
$22.00

Out of stock

Out of stock

About this product

The 7Semi EC200G-CN 4G LTE Cat 1 bis GNSS Mini Industrial Modem is a compact cellular communication board designed for industrial IoT, remote monitoring, telemetry, and embedded applications. Powered by the Quectel EC200G-CN module, it supports LTE-FDD and LTE-TDD connectivity with maximum LTE-FDD data rates of 10 Mbps download and 5 Mbps upload.

The modem integrates GPS, BeiDou, and QZSS satellite positioning capabilities for location-based applications. It features USB Type-C and UART communication interfaces, a Nano SIM card slot, and external antenna connectivity for integration with computers, microcontrollers, and industrial controllers.

Supporting 5V DC power through USB-C or 5–26V DC through the external power input, the board provides flexible installation options. Its compact design, AT command support, and included FPC cellular antenna make it suitable for industrial automation, asset tracking, remote data acquisition, and wireless IoT connectivity.

Features

  • 4G LTE Cat 1 bis Connectivity: Supports LTE-FDD and LTE-TDD networks for industrial and embedded cellular communication.

  • LTE Data Transmission: Provides maximum LTE-FDD download speeds of 10 Mbps and upload speeds of 5 Mbps.

  • Multi-Band LTE Support: Supports LTE-FDD bands B1, B3, B5, B8 and LTE-TDD bands B34, B38, B39, B40, B41.

  • GNSS Positioning: Supports GPS, BeiDou, and QZSS satellite constellations for location and tracking applications.

  • USB-C & UART Communication: Provides USB Type-C and UART interfaces for connecting compatible host devices.

  • Flexible Power Supply: Supports 5V DC through USB-C or 5–26V DC through the external power input.

  • Nano SIM Connectivity: Features a Nano SIM card slot for cellular network access.

  • External Antenna Connectivity: Supports external RF antennas through U.FL/I-PEX antenna connectors.

  • AT Command Control: Enables network registration, GNSS operation, modem configuration, and cellular data communication through supported AT commands.

  • Network Protocol Support: Supports TCP, UDP, PPP, MQTT, HTTP, HTTPS, and other module-supported networking protocols.

  • Compact Industrial Design: Features a 61 × 40mm PCB footprint for integration into embedded and industrial systems.
