ESP32-C3-Dev-BoardC-02 – WiFi, Bluetooth, USB, RGB LED

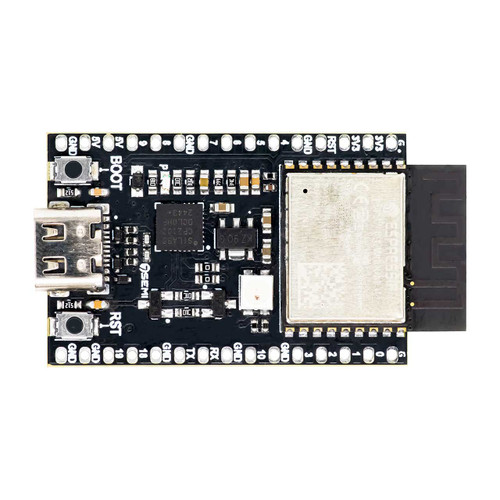

The 7Semi ESP32-C3 Dev Board is a compact, breadboard-friendly development board engineered around the Espressif ESP32-C3FH4 chip—a 32-bit RISC-V single-core processor clocked at up to 160 MHz. With built-in 2.4 GHz Wi-Fi and Bluetooth 5 LE, this module provides an ideal balance of connectivity, power efficiency, and security.

The board integrates a USB Type-C port for power and programming, an onboard RGB status LED, and supports low-power operation modes, making it perfect for embedded wireless applications, sensor nodes, automation control, and rapid prototyping.

Key Features

• Processor: 32-bit RISC-V single-core @ up to 160 MHz

• Wireless:

  • Wi-Fi: IEEE 802.11 b/g/n (2.4 GHz) up to 150 Mbps

  • Bluetooth® 5 LE: with Mesh, 2 Mbps, coded PHY (125 Kbps, 500 Kbps)

• Memory:

  • 400 KB SRAM + 384 KB ROM

  • 4 MB onboard flash

• USB: Full-speed USB Type-C interface (power, programming, debugging)

• Onboard RGB LED: Controllable via PWM for status or custom indication

• Peripheral Interfaces:

  • I2C, SPI, UART, I2S, RMT

  • 20+ GPIO pins, all clearly labeled

• Power:

  • Powered via USB (5V)

  • Onboard 3.3V regulator

• Security: Secure boot, flash encryption, digital signature, and hardware crypto (AES, SHA, RSA, HMAC)

• Low Power Modes: Modem-sleep, Light-sleep, Deep-sleep (5 µA typical)

Key Applications

• Wi-Fi-enabled IoT nodes and gateways

• BLE-based wearable and sensor devices

• Smart lighting, switches, and controls

• Industrial automation and telemetry

• Embedded prototyping with USB host/device

Package Includes

• 1 × 7Semi ESP32-S3 Dev Board

• Optional headers (unsoldered)

Resources

• ESP32-C3 Datasheet
