Product Overview

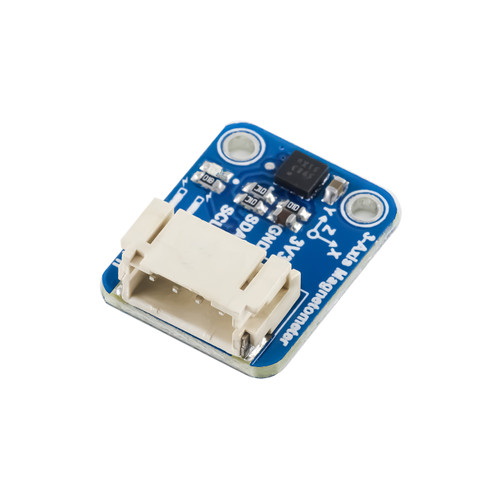

The MMC5983MA Mini Magnetometer Breakout is a 3-axis magnetic sensor designed for precise magnetic field measurements. With ultra-low noise and high resolution, it can detect magnetic fields up to ±8 Gauss. The sensor operates with an I2C interface, offering low power consumption and fast response, making it ideal for applications in navigation, orientation, and magnetic anomaly detection in compact devices. Its small form factor allows easy integration into various electronics and embedded systems.
Features
-
Triple-Axis Magnetic Sensing: Offers high precision across three axes, achieving 0.4mG resolution and ±0.5° heading accuracy.
-
High Dynamic Range and Resolution: ±8G FSR, 18-bit operation for detailed and accurate measurements.
-
Built-in Degaussing Circuitry: Effectively removes residual magnetization, ensuring consistent performance even after exposure to strong external magnetic fields.
-
Advanced Compensation Features: On-chip sensitivity and temperature compensation for stable readings under varying conditions.
-
Fast I2C Communication: Features I2C protocol with a fast mode up to 400KHz, allowing seamless integration with other devices.
-
Energy-Efficient Design: Consumes only 1µA during power down, ideal for power-sensitive applications.
-
Compact Form Factor: Small PCB layout with a horizontal 4-pin 2mm pitch JST connector, perfect for space-constrained applications.
Resources
Warranty Information
All the products supplied by 7semi are genuine and original. We offer 14 days replacement warranty in case of manufacturing defects. For more details, please visit our cancellation and returns page.
Specifications
- Voltage Supply:
- 3.3V
- Interface:
- I2C
- Output Data Rate:
- Up to 1000Hz
- I2C Address:
- 0x30
