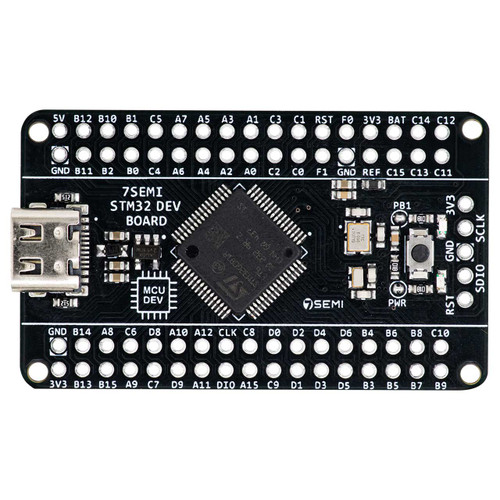

7Semi STM32G0B1RET6 Development Board – High Performance ARM Cortex-M0+ Board

The 7Semi STM32G0B1RET6 Development Board is a compact and versatile development platform built around the STM32G0B1RET6, a 32-bit Arm Cortex-M0+ microcontroller operating at up to 64 MHz. With 512 KB Flash memory and 144 KB SRAM, the board provides ample resources for embedded control, industrial automation, sensor interfacing, communication systems, motor control, and IoT applications.

The board brings out the STM32G0B1RET6’s major GPIO and peripheral interfaces through accessible headers, making it suitable for rapid prototyping and custom embedded development. It supports multiple communication interfaces including USART, LPUART, I²C, SPI, and FDCAN, along with ADC, DAC, timers, comparators, and other integrated peripherals. Programming and debugging are performed through the SWD interface using an ST-Link compatible programmer.

A USB Type-C connector is provided for 5 V power input only; the USB data lines are not connected to the MCU. An onboard user-programmable LED connected to PB1 provides a convenient indicator for testing, debugging, and application status.

Features

• STM32G0B1RET6 Microcontroller: Built around a high-performance 32-bit Arm Cortex-M0+ MCU operating at up to 64 MHz for responsive and efficient embedded applications.
• Large Memory Capacity: Provides 512 KB Flash memory and 144 KB SRAM, allowing development of feature-rich firmware, communication stacks, and complex control applications.
• Rich Communication Interfaces: Supports multiple USART, LPUART, I²C, SPI, and FDCAN interfaces for connecting sensors, displays, communication modules, industrial devices, and other peripherals.
• Advanced Analog Capability: Includes a high-speed 12-bit ADC, dual 12-bit DAC channels, and integrated analog comparators for sensor acquisition, monitoring, and analog control applications.
• Flexible Timer and PWM Resources: Multiple advanced-control, general-purpose, low-power, and basic timers support PWM generation, motor control, pulse measurement, frequency generation, and precise timing functions.
• Accessible GPIO Headers: MCU GPIO and peripheral signals are exposed through board headers for easy prototyping and integration with external circuits.
• Onboard User LED: Includes a programmable status LED connected to PB1, useful for firmware testing, debugging, system status, and application indications.

• Onboard Clock Crystals: Equipped with an 8 MHz main system clock crystal (HSE) and a 32.768 kHz RTC crystal (LSE) for accurate system timing and real-time clock operation.

• SWD Programming and Debugging: Supports reliable firmware programming and real-time debugging through SWDIO and SWCLK using an ST-Link compatible programmer.

• USB Type-C Power Input: Convenient USB-C connector provides 5 V board power only; it is not connected for USB data communication or firmware programming.
• Low-Power MCU Architecture: The STM32G0 series provides multiple low-power operating modes, making the board suitable for energy-efficient embedded and battery-powered applications.
• Compact Development Platform: Designed for prototyping, evaluation, education, product development, industrial control, sensor interfaces, and custom embedded systems.

Important Note: The USB Type-C connector on this board is intended for power input only. For programming and debugging, use the SWD interface with an ST-Link compatible programmer.

What’s Included

• 1x STM32G0B1RET6 Development Board

• 2.54mm pin headder strip

ST-Link can be purchased seperatly by following this link , ST-Link

Resources

STM32G0B1RET6 Datasheet

DXF file

Step file
