7Semi CP2105 Dual USB to UART Converter Module with USB Type-C

SKU
CM-11029

Provides two independent UART channels through one USB connection for serial device communication.

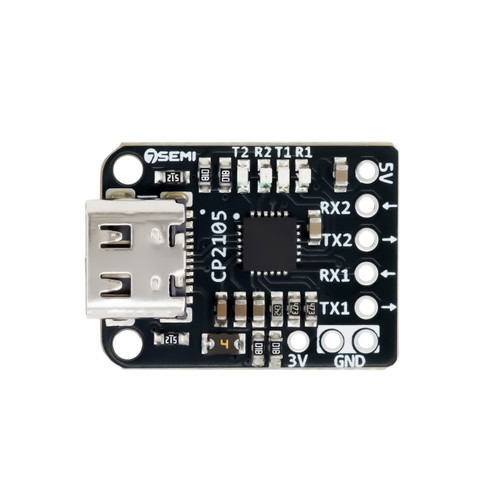

USB to dual UART module with TX RX pins labeled TOP VIEW SHOWING COMPONENTS
Sold Out

Select a photo to enlarge it.

24mm x 17mm x 4.95mm

Write a Review
$8.20

Out of stock

Out of stock

About this product

The 7Semi CP2105 Dual UART Module provides two independent UART communication channels through a single USB connection. It is designed for applications where a computer needs to communicate with two serial interfaces or devices without using two separate USB-to-UART converters.

The module is useful for embedded development, debugging, configuration, production testing, and multi-device communication. Both UART channels can be connected to the required serial interfaces of the target system, allowing users to monitor or communicate with two UART connections from the same computer.

Key Features

  • Dual Independent UART Channels: Provides two independent UART channels through a single USB connection.
  • Dual Virtual COM Ports: Supports two Virtual COM Ports for convenient communication with two serial interfaces from a host computer.
  • Enhanced UART Interface: UART Channel 1 (ECI) supports baud rates from 300 bps up to 2 Mbps.
  • Standard UART Interface: UART Channel 2 (SCI) supports baud rates from 2400 bps up to 921600 bps.
  • USB Type-C Connectivity: Provides USB Type-C connectivity for host communication and power.
  • USB 2.0 Full-Speed: Supports USB 2.0 Full-Speed communication at up to 12 Mbps.
  • Integrated Voltage Regulator: Features an onboard 3.45 V typical regulator output with up to 70 mA capability.
  • Compact Design: Suitable for embedded development, debugging, configuration, testing, and dual-UART communication applications.

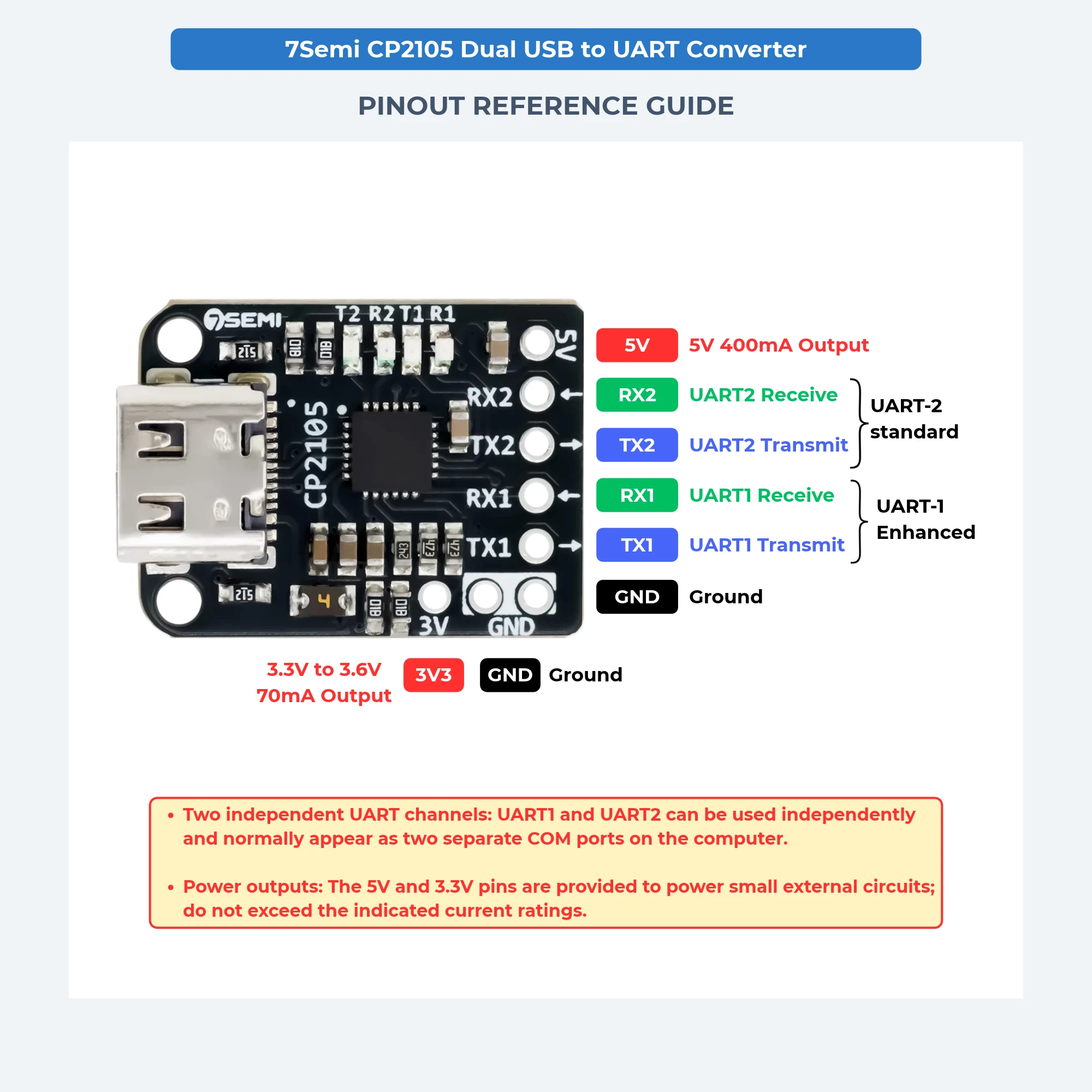

Note: UART Channel 1 is the Enhanced UART (ECI), while UART Channel 2 is the Standard UART (SCI).



Package Includes

  • 1 × 7Semi CP2105 Dual USB to UART Converter Module
  • 1 × 2.54 mm Header Strip

Resources

Datasheet

STEP File

DXF File
