7Semi CP2105 USB to Dual UART Converter – USB Type-A, Dual Serial Interface

SKU
CM-11028

Provides two independent UART channels through one USB connection for serial device communication.

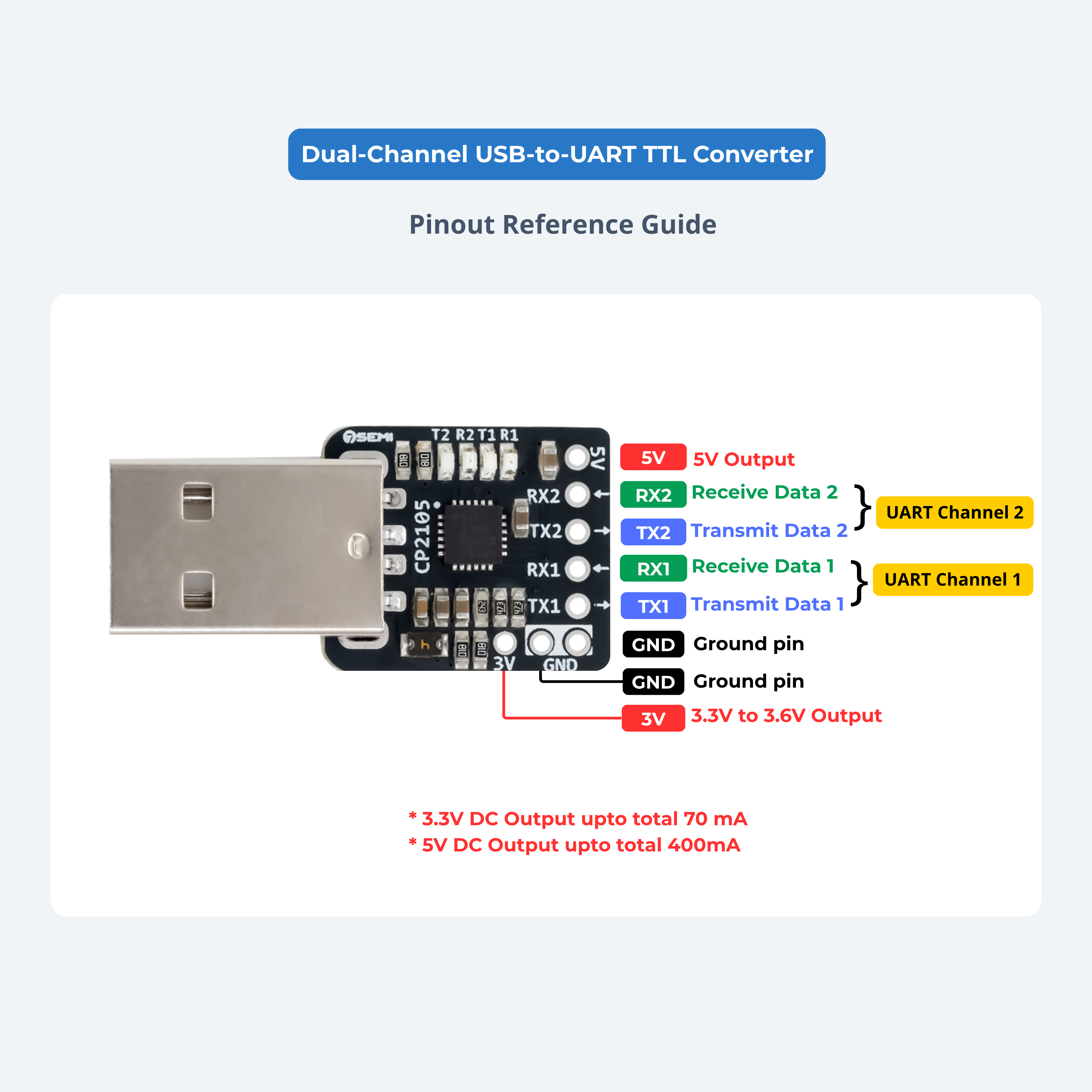

7Semi CP2105 USB to dual UART converter module top view with USB Type A connector

Select a photo to enlarge it.

35mm x 17mm x 5.3mm

Write a Review
$5.91
30 in stock
Adding to cart… The item has been added

About this product

The 7Semi CP2105 Dual UART Module provides two independent UART communication channels through a single USB-A connection. It is designed for applications where a computer needs to communicate with two serial interfaces or devices without using two separate USB-to-UART converters.

The module is useful for embedded development, debugging, configuration, production testing, and multi-device communication. Both UART channels can be connected to the required serial interfaces of the target system, allowing users to monitor or communicate with two UART connections from the same computer.

Key Features

  • Provides two independent UART channels through a single USB Type A connection.
  • Can appear as two Virtual COM Ports for convenient access from computer software.
  • Supports commonly used UART data formats and serial communication settings on its serial interfaces.
  • The module supports a 5V DC typical USB supply, while the built-in regulator provides 3.3V typical output with up to 70 mA rating.
  • The integrated USB transceiver and clock reduce the need for additional external USB components.
  • Its dual-UART design is useful for development systems, testing equipment, multi-port devices, and embedded debugging setups.

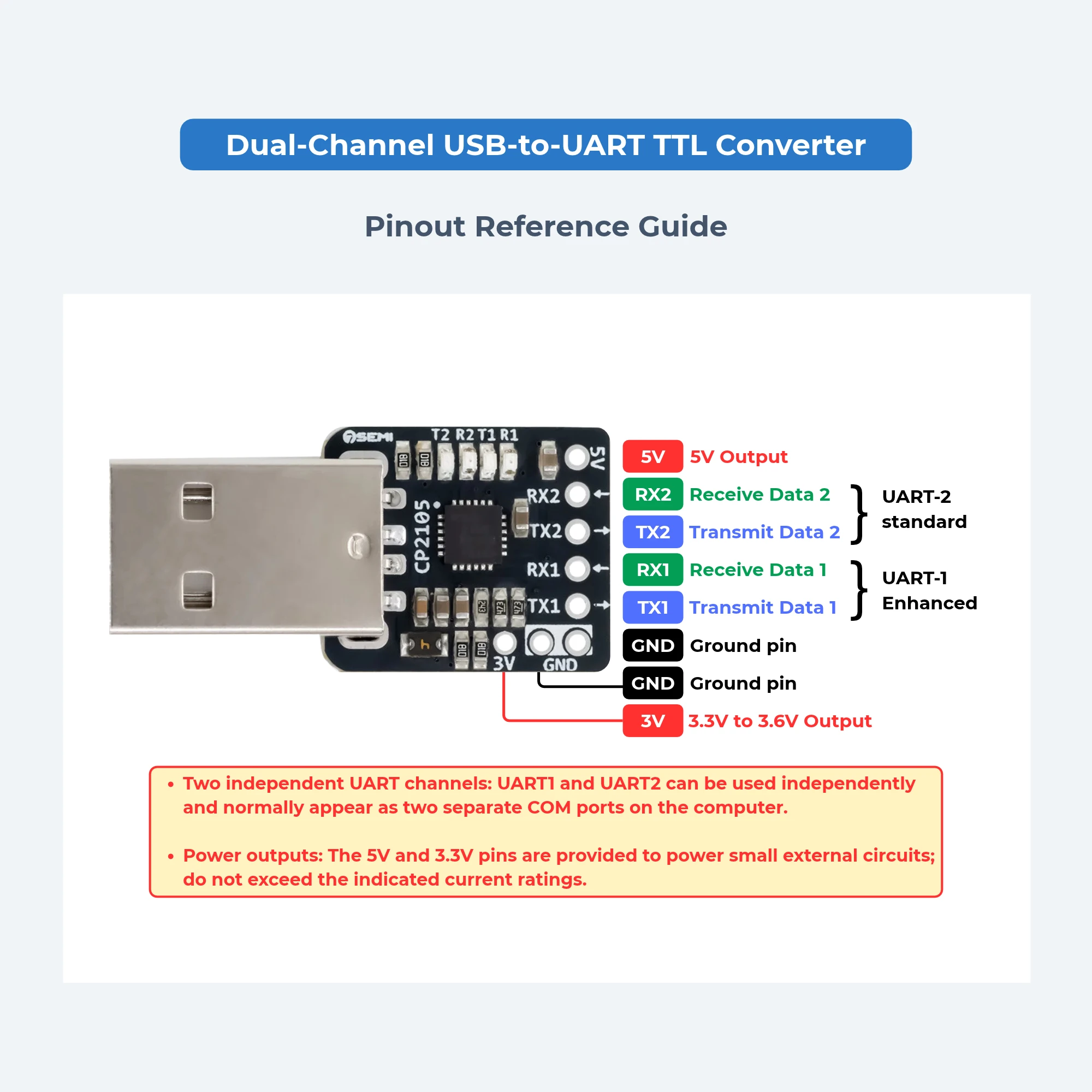

Note-: UART Channel 1 is Enhanced & UART Channel 2 is Standard

Resources

Datasheet of CP2105
