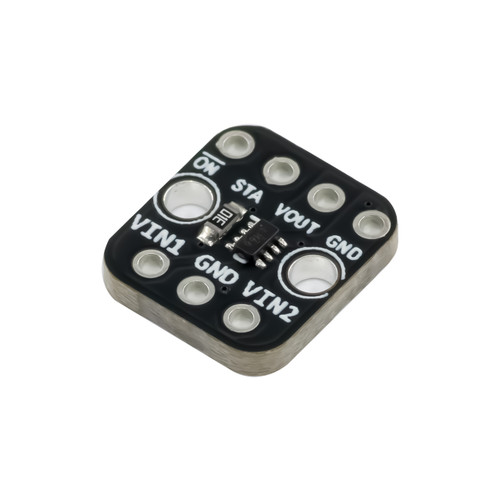

The 7Semi LM66200 Ideal Diode Module is a smart power management solution designed to automatically switch between two power sources. It ensures continuous and stable output by selecting the higher voltage input without interruption. Built with low-loss MOSFET-based ideal diode design, it offers efficient power transfer with minimal voltage drop. This module is perfect for battery backup systems, dual power supply setups, and embedded applications where reliability is important.
Features:
• LM66200 Based Design: Dual ideal diode power management
• Dual Input Support: Connect two power sources easily
• Automatic Switchover: Seamless switching between inputs
• Low Voltage Drop: Efficient power delivery
• Reverse Current Protection: Prevents backflow damage
• High Efficiency: Low power loss operation
• Compact Module: Easy integration in projects
• Stable Output: Continuous power without interruption
• Ideal Use: Battery backup, IoT, embedded and power systems
Resources
- IC USED:
- LM66200
- OPERATIONAL VOLTAGE:
- 1.6V TO 5.5V
- OPERATIONAL TEMPRATURE:
- -40°C TO 70°C
- OUTPUT CURRENT RATING:
- 2.5A
- SLEW RATE:
- AT 3V , 1.3MS
- DIMENSION IN mm:
- L=10 W = 11 H = 2.6
