7Semi UCC27516 Gate Driver Breakout Board (4A Peak-Source/Peak-Sink)

7Semi
SKU
BO-10166

Drives MOSFET and IGBT gates for power-switching applications.

UCC27516 Gate Driver Breakout Board - 4A Peak-Source/Peak-Sink, high-speed gate driver for efficient switching, available at 7semi.com.

Select a photo to enlarge it.

26mm X 19mm X 12mm

Write a Review
$2.78
28 in stock

Shipped in 24 Hours from Mumbai Warehouse

Adding to cart… The item has been added

About this product

The 7Semi UCC27516 Gate Driver Breakout Board integrates Texas Instruments' UCC27516DRSR, delivering 4A peak-source and 4A peak-sink currents for efficient MOSFET and IGBT switching. It features a wide operating voltage range of 4.5V to 18V, minimal propagation delay of 13ns, and robust noise immunity, making it ideal for high-performance power electronics applications.

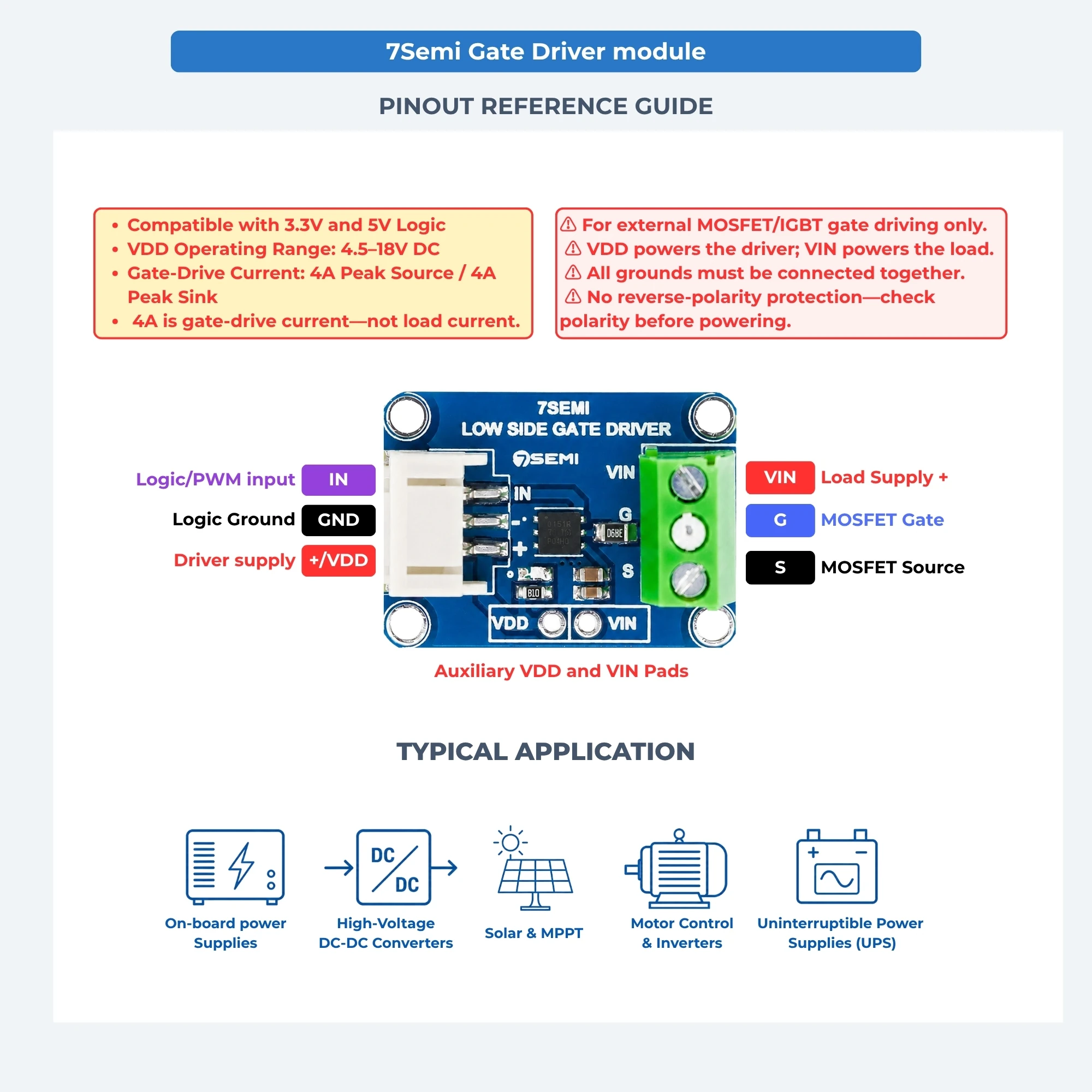

Pinouts and Connections


Key Features:
  • Optimised Power Delivery: Achieves symmetrical 4-A Peak-Source and 4-A Peak-Sink drive current, providing efficient and reliable power switching.
  • Ultra-Fast Switching: Experience minimal propagation delay with typical values as low as 13 ns, ensuring rapid and accurate switching operations.
  • Versatile Voltage Range: Operates efficiently within a wide VDD range of 4.5 to 18 V, accommodating various power levels and application needs.
  • Temperature Resilient: Designed to function across a broad temperature range of -40°C to 80°C, making it suitable for extreme environments.
  • Enhanced Noise Immunity: Features hysteretic-logic thresholds for high-noise immunity, ensuring stable performance in electrically noisy environments.
  • Glitch-Free Operation: Internal undervoltage lockout (UVLO) circuitry guarantees glitch-free operation during power up and power down.
