The 7Semi Vikram-1101 is a compact and easy-to-use motor driver module designed to control a single DC motor. It works with a wide input voltage range from 3.3V to 10V, making it suitable for low-voltage and battery-powered applications. The module can deliver up to 1A continuous current and handle peak loads, ensuring smooth motor operation. It supports simple control using input signals and allows speed adjustment using PWM, making it easy to control motor speed and direction. With built-in safety features and a user-friendly design, this module is a great choice for robotics, small automation systems, and general motor control projects.
Features:
• Single Motor Control: Designed to control one DC motor.
• 1A Output Current: Suitable for small to medium DC motors.
• High Peak Current: Supports up to 1.8A for short durations.
• PWM Speed Control: Allows easy speed adjustment.

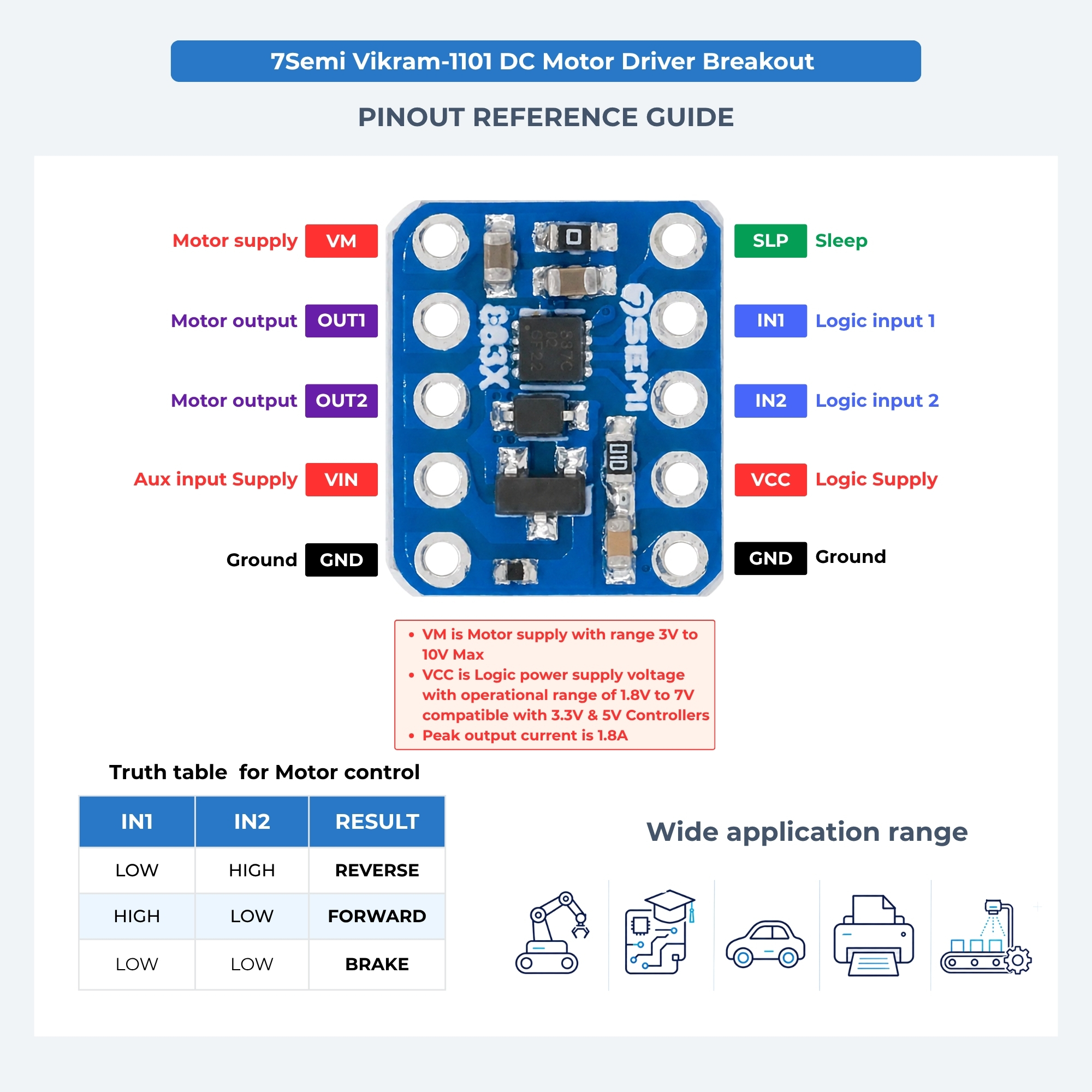

• Simple Operation: Easy connection and control using input pins.
• Built-in Protection: Includes over-current, under-voltage, and thermal protection.
• Current Limiting: Helps protect motor and circuit without extra components.
Resources
- Category of product:
- H-bridge motor driver
- Dimension in mm:
- 13mm x 11mm x 2.65mm
- _3d_glb:
- https://7semi.com/content/3d-files/10111.glb
- Supply voltage required:
- 3V to 10V max
- Logic supply supported:
- 3.3V & 5V
- Peak output current:
- 1.8A
- Continuous current:
- 1A
