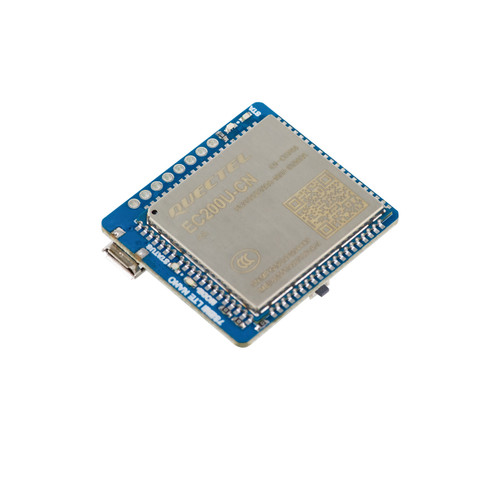

The 7Semi EC200U-CN 4G LTE Cat 1 GNSS USB Nano Modem combines high-speed cellular connectivity and multi-constellation. It can operate standalone with a PC or laptop through Micro-USB for easy AT command control. With LTE, optional GSM/GPRS, and integrated GNSS capabilities, the modem is ideal for asset tracking, remote monitoring, telemetry, smart metering, and IoT applications.
Key Features
- 4G LTE Cat 1: Up to 10 Mbps downlink and 5 Mbps uplink.
- Multi-Band LTE: Supports FDD B1/B3/B5/B8 and TDD B34/B38/B39/B40/B41.
- Multi-Constellation GNSS: Supports GPS, BeiDou, Galileo and QZSS.
- Standalone USB Operation: Direct connection to a PC/laptop through Micro-USB for AT command communication.
- Flexible Integration: Supports UART and GPIO control for connection with external controllers and embedded systems.
- Nano SIM Support: Onboard Nano SIM slot for convenient cellular connectivity.
Products include
1x EC200U GNSS Module
1x Antenna with UFL Connector
Pin header strip of pitch 2.54mm
Resources
- Category:
- LTE +GNSS COMMUNICATION MODULE
- Communication interface:
- UART
- Supply voltage:
- 5V to 26V
- Input current rating:
- 500mA to 2A max
- GPIO Voltage tolerance:
- 3.3V
- Operational temprature:
- -40C to +80C
- GNSS Constellations:
- GPS, BDS (BeiDou), Galileo, GLONASS, QZSS
- LTE-Frequency Bands:
- FDD-LTE: B1, B3, B5, B8; TDD-LTE: B34, B38, B39, B40, B41
- GSM Frequency Bands::
- B3 / B8
- Supported Protocols:
- TCP, UDP, PPP, MQTT, NTP, HTTP, HTTPS, SSL, FTP, FTPS, CMUX
- Antenna Connector:
- U.FL / I-PEX RF Connectors
- Dimension in mm:
- 39mm x 34mm x 6.73mm
