ENS160 Air Quality Sensor I2C Probe

The 7Semi ENS160 Air Quality Sensor I2C Probe is a compact digital air-quality sensing solution designed for monitoring indoor air quality, VOC levels, eCO2, and air-quality index (AQI). Built around the ScioSense ENS160 multi-gas Metal Oxide (MOX) sensor, it provides processed digital air-quality data for HVAC systems, smart buildings, indoor environmental monitoring, IoT devices, and automation applications.

The probe provides TVOC output from 0 to 65,000 ppb, eCO2 output from 400 to 65,000 ppm CO2-equivalent, and AQI-UBA values from 1 to 5. Its digital I²C interface enables straightforward integration with microcontrollers, data loggers, and embedded monitoring systems.

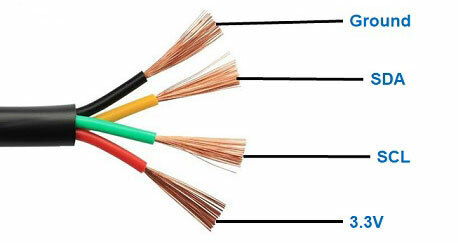

The sensing assembly is enclosed in a ventilated plastic probe housing, allowing ambient air to reach the sensing element while providing mechanical protection against direct contact with the internal sensing assembly. A 4-wire cable provides 3.3 V, GND, SDA, and SCL connections for convenient remote installation.

• Digital Air Quality Monitoring: Provides processed air-quality information for indoor environmental monitoring, HVAC, smart-building, and IoT applications.

• Multi-Gas MOX Sensing: Uses Metal Oxide (MOX) sensing technology to detect changes in volatile organic compounds and other air-quality-related gases.

• TVOC Output: Provides a 0 to 65,000 ppb TVOC output range for monitoring volatile organic compound levels.

• eCO₂ Output: Provides 400 to 65,000 ppm CO2-equivalent (eCO2) output for air-quality assessment.

• Air Quality Index: Provides AQI-UBA values from 1 to 5 for simple interpretation of indoor air quality.

• Digital I²C Interface: Enables straightforward integration with microcontrollers, data loggers, HVAC controllers, and embedded monitoring systems.

• On-Chip Data Processing: Provides processed digital air-quality outputs, reducing the need for complex external signal processing.

• Ventilated Plastic Probe Housing: Features slotted openings that allow ambient air to circulate around the sensing element for effective air-quality monitoring.
