7Semi EG800AK-CN LTE Cat 1 USB Dongle

SKU
CM-10151

Provides cellular LTE connectivity through USB for IoT and remote monitoring applications.

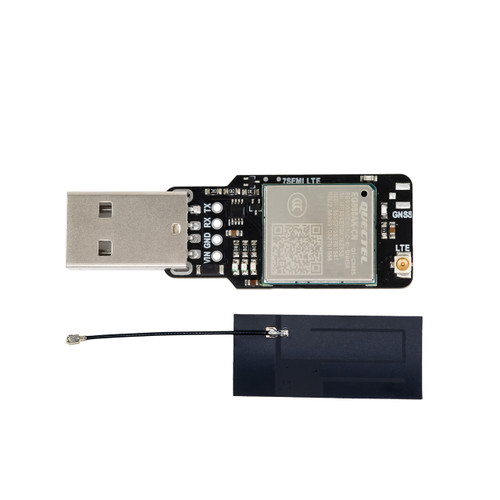

7Semi LTE USB Dongle featuring the Quectel EG800AK-CN LTE Cat 1bis modem, USB Type-A connector, LTE antenna connector, and Nano SIM support.

Select a photo to enlarge it.

54mm x 18mm x 7.91mm

Write a Review
$13.00
70 in stock
Adding to cart… The item has been added

About this product

The 7Semi LTE USB Dongle is a compact 4G LTE communication solution built around the Quectel EG800AK-CN LTE Cat 1 bis  modem. Designed for IoT, telemetry, industrial automation, remote monitoring, and embedded development, it combines reliable cellular connectivity with a convenient USB form factor.

The board features a USB Type-A connector for power and communication, an onboard Nano SIM card slot, an LTE antenna connector, and accessible UART breakout pins for direct AT command control. Its compact design makes it ideal for developers and engineers looking to quickly integrate LTE connectivity into embedded systems, gateways, data loggers, and industrial devices.

Supporting LTE Cat 1bis networks with download speeds up to 10 Mbps and upload speeds up to 5 Mbps, the dongle provides a cost-effective and power-efficient solution for modern IoT deployments.

Features

  • Quectel EG800AK-CN LTE Cat 1bis modem
  • Applicable Region - India and China
  • Frequency Bands
    •  LTE-FDD B1/ 3/ 5/ 8
    •  LTE-TDD B34/ 38/ 39/ 40/ 41
  • USB Type-A interface
  • Operating Voltage - 5V to 26V
  • Nano SIM card slot
  • U.FL / IPEX LTE antenna connector
  • UART breakout interface
  • TX, RX, VIN, and GND access pins
  • LTE download speed up to 10 Mbps
  • LTE upload speed up to 5 Mbps
  • Compact USB dongle form factor
  • Industrial-grade LTE connectivity
  • Supports AT command communication
  • External LTE antenna included
  • Onboard power regulation circuitry
  • Status indication LEDs

Resources

Datasheet

DXF File

Driver installation guide

EG800 Driver

AT Commands manual
