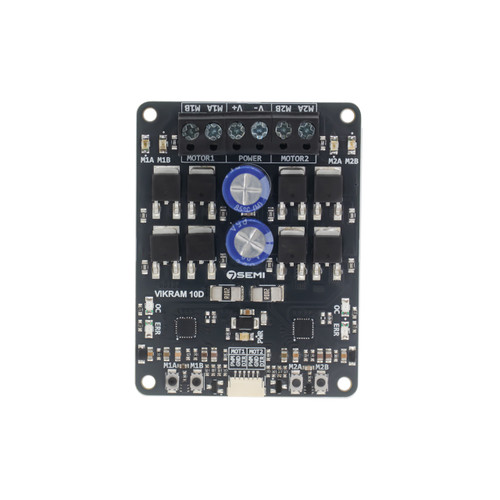

The 7Semi VIKRAM-3010D is a powerful dual-channel motor driver designed to control two high-power DC motors easily. It supports a wide input voltage range from 5.9V to 30V and can deliver up to 10A continuous current per channel, making it suitable for heavy-duty motors and high-load applications. The board allows full control of motor direction, speed, and braking, giving smooth and precise operation. It comes with strong connectors for secure wiring and built-in components to handle sudden current changes. With its solid design and safety features, this module is ideal for robotics, automation systems, and other applications where strong and reliable motor control is needed.
Features:
• Dual Motor Control: Can drive two high-power DC motors independently.
• High Current Support: Up to 10A continuous per channel, suitable for heavy loads.
• Wide Voltage Range: Works with 5.9V to 30V DC input.
• Direction & Speed Control: Supports forward, reverse, braking, and PWM speed control.
• Multi-Voltage Logic Support: Works with 1.8V, 3.3V, and 5V control signals.
• Strong Screw Terminals: Secure and reliable connection for motors and power input.
• Built-in Protection: Includes thermal shutdown and over-current protection.
• Status & Fault Indication: LED indicators for easy monitoring.
• Stable Performance: Onboard capacitors help handle sudden current changes.
• Rugged Design: Suitable for robotics, AGVs, and industrial automation systems.
Resources

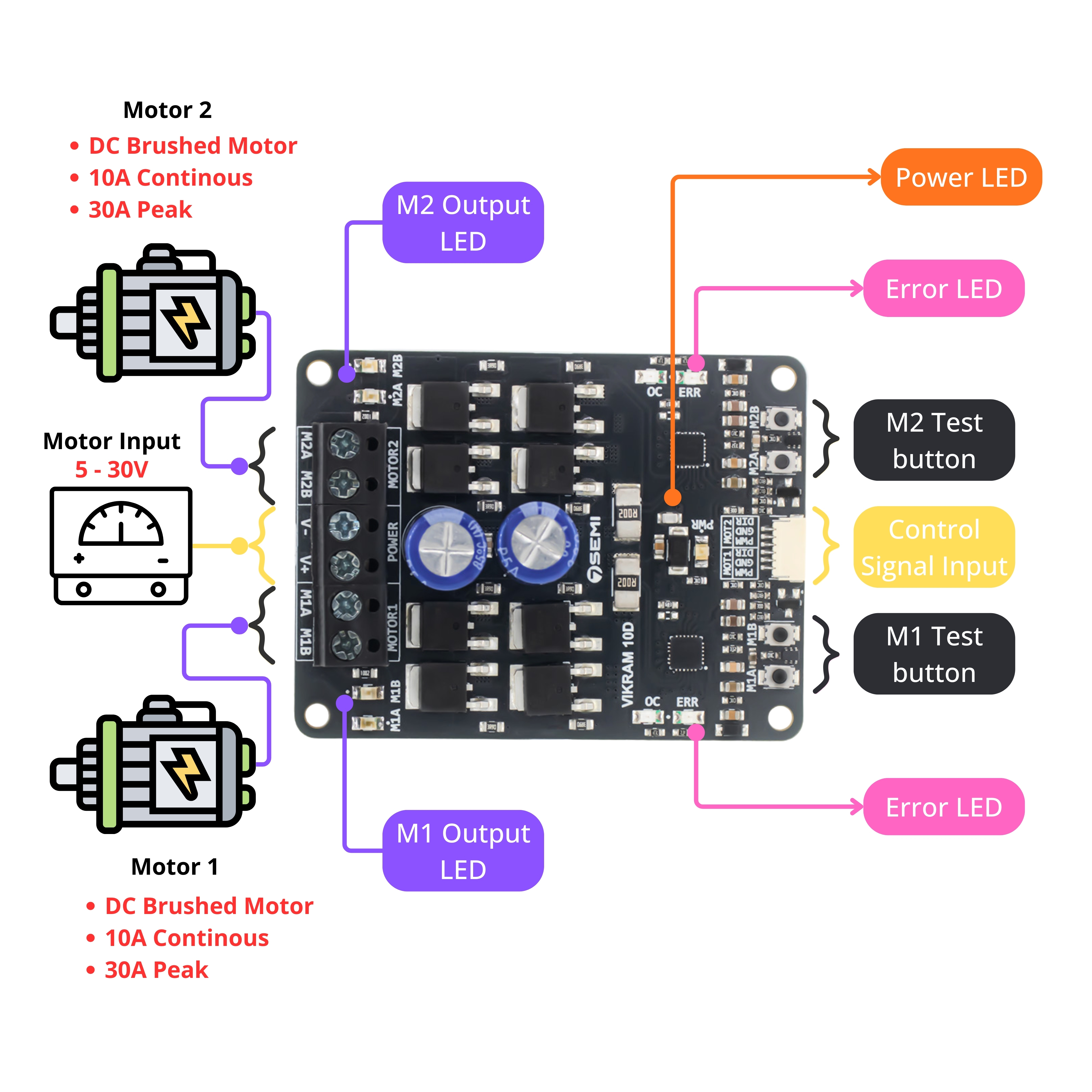

Pinouts
- _3d_glb:
- https://7semi.com/content/3d-files/10282_3.glb
- OPERATING VOLTAGE:
- 5V TO 30V
- OPERATIONAL TEMPRATURE °C:
- –40°C to +70°C
- NO OF CHANNELS:
- TWO CHANNEL
- CURRENT RATING:
- 10A
- CONTROLLER:
- PWM
- DIMENSION IN mm:
- 66 X 55 X 24
