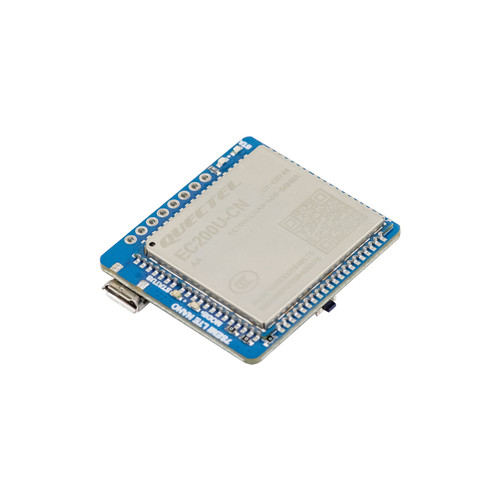

The 7Semis 4G LTE GSM/GPRS GNSS USB Nano Modem stands out as an ultra-compact LTE Modem, measuring just 35.25x33.5 mm. It integrates the EC200U-CN LTE Cat 1 wireless communication module, a product crafted by Quectel. This remarkably compact LTE Modem offers standalone functionality with PC/Laptop connectivity via micro-USB, eliminating the need for any additional attachments. The QuecOpen EC200U series comprises wireless communication modules supporting LTE-FDD, LTE-TDD, and GSM/GPRS network data connections. With versatile applications in automotive, metering, tracking systems, security, routers, wireless POS, mobile computing devices, and more, the EC200U series QuecOpen module caters to a broad spectrum of M2M requirements.
Featuring a broad frequency range of 700-2700MHz, the 4G LTE antenna is suitable for various applications, including BLE & LoRa/RF. Sized at 52mm x 24mm, the antenna comes with a coaxial cable terminating in an IPEX (u.FL equivalent) connector. Its practical design includes a 3M adhesive backing for easy attachment to your project.
- Power Supply: 5V USB
- Frequency Bands
- LTE-FDD B1/B3/B5/B8
- LTE-TDD B34/B38/B39/B40/B41
- GSM 900 MHz/1800 MHz
- GNSS1: GPS, GLONASS, BeiDou, Galileo, QZSS
- Supports any Nano sim.
- High-efficiency power regulation.
- Compatible with worldwide LTE, UMTS/HSPA+ and GSM/GPRS/EDGE coverage with regional or global modules which work with different frequencies & carriers.
- Delivers 10Mbps downlink and 5Mbps uplink data rates
- Can be used standalone with PC/Laptop over micro-USB
- Optional Send/Receive AT commands over Raspberry Pi UART port is available
- Taking the module into the Airplane Mode, resetting the module or RI and DTR functions can be accessible over GPIO pins.
- The power of the whole board electronics can be disabled for low-power consumption use cases
- Working temperature range: -40C ~ 80C.
- Frequency range: 700-2700Mhz
- Gain: 8dBi internal antenna
- VSWR: <=1.8
- Input impedance: 50 Ohm
- Material: Radiator FPC
- Antenna Size: 52x24mm
- Cable type: 1.13 coaxial cable
- Connector style: IPEX (u.FL equivalent)
- Polarization: Vertical
- Power: 30w
- Mounting: 3M sticker
The EC200U-CN LTE 4G and GNSS Ultra-compact Modem is a powerful and versatile communication device that combines 4G LTE connectivity with GNSS (Global Navigation Satellite System) technology. The modem is designed to provide reliable and fast wireless communication for various applications, including industrial automation, remote monitoring, and mobile computing. The modem supports multiple LTE bands and can achieve data rates of up to 150Mbps for download and 50Mbps for upload, making it ideal for high-speed data transmission. It also features GNSS technology, allowing for accurate positioning and navigation in various environments.
The modem is ultra-compact, measuring just 35.25mm x 33.5mm, making it easy to integrate into small devices and systems. It is also easy to use, with a simple AT command interface for easy configuration and control. The EC200U-CN LTE 4G and GNSS Ultra-compact Modem is a powerful and reliable communication device, ideal for applications that require high-speed data transfer and accurate positioning. Its small size and ease of use make it an excellent choice for developers and engineers looking for a versatile and powerful communication solution.
EC200U-CN LTE 4G GNSS Nano Modem Dimensions
An LTE 4G GNSS modem is a communication device that combines the capabilities of 4G LTE connectivity and GNSS technology for precise positioning and navigation. The modem supports various LTE bands and can achieve high-speed data transfer rates, providing reliable and fast wireless communication for various applications, including industrial automation, remote monitoring, and mobile computing. Additionally, the modem features GNSS technology, enabling it to provide accurate positioning and navigation in various environments. This makes it an ideal solution for applications that require both cellular communication and GPS navigation, such as fleet management, vehicle tracking, and asset tracking. With an LTE 4G GNSS modem, developers and engineers can design efficient and reliable systems that can communicate and navigate accurately in real-time, providing a seamless user experience.
